LONG-LENGTH HEAT-INSULATED STRIPS
Technical Specifications ÒÓ Ó 88 023. 015-94 (Without restriction of validity).

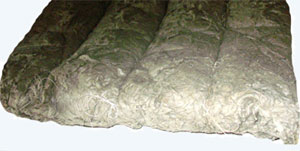

Long-length heat-insulated strips are made of canvases superthin glass staple fibers of special purpose with a facing from two parties glass or a siliceous fabric and stitched by corresponding strings. Strips is a nonflammable, not explosive and nontoxical material.

Strips are applied for heat insulation units and heat-conducting systems of the general and special purpose in various branches of a national economy.

Limiting temperature of application of strips from -50 °Ñ up to + 450 °Ñ (with a facing from glass fabrics) from -50°Ñ up to +700 °Ñ (from siliceous fabrics). Heat conductivity of strips, W/m•Ê should be no more:

Heat conductivity of heat-insulated strips

Table
TemperatureNorm
W/m•Ê
(298 ± 5) Ê0,040
(398 ± 5) Ê0,062
(573 ± 5) Ê0,095

The mass fraction of a moisture of strips should be no more than 2 %.

As covering strips apply fabrics aviation of glass lisle thread complex filaments or insulating fabrics from glass lisle thread complex filaments, and also siliceous a fabric of mark SF-11.

In the consent with the customer of a strip can be made with others covering and seam materials.
